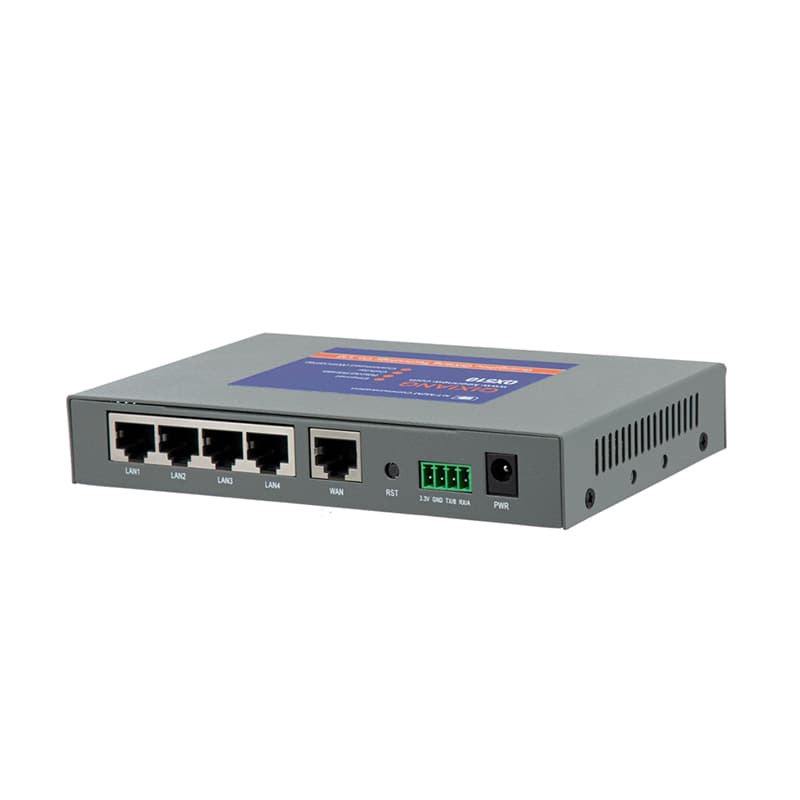

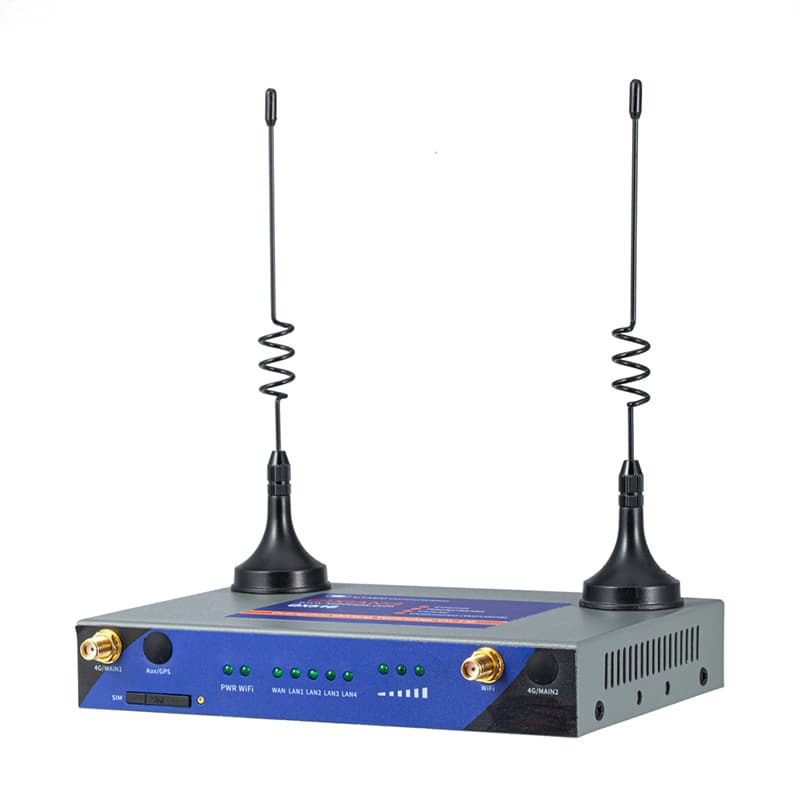

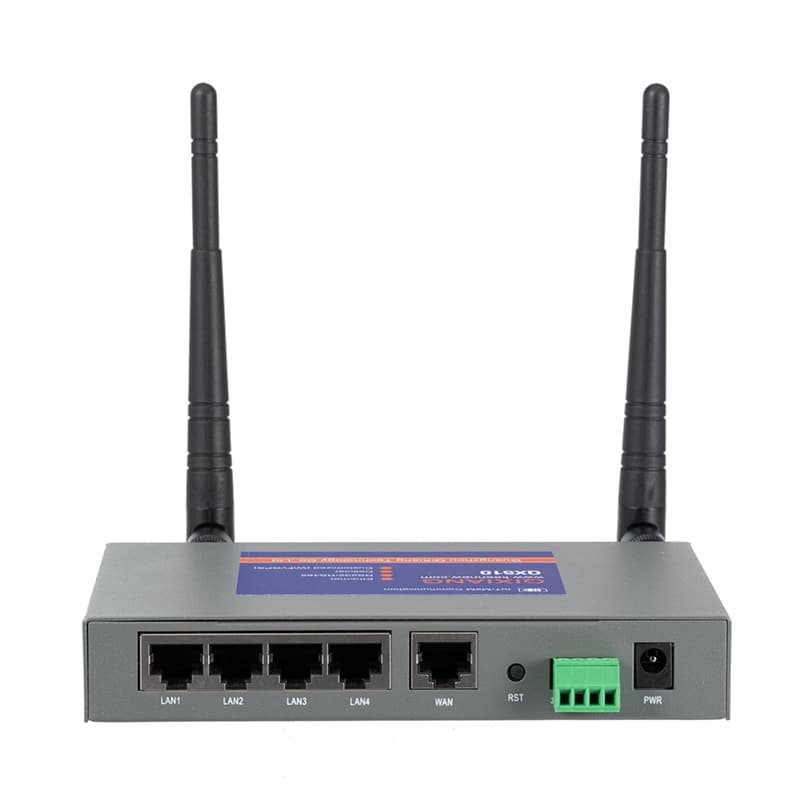

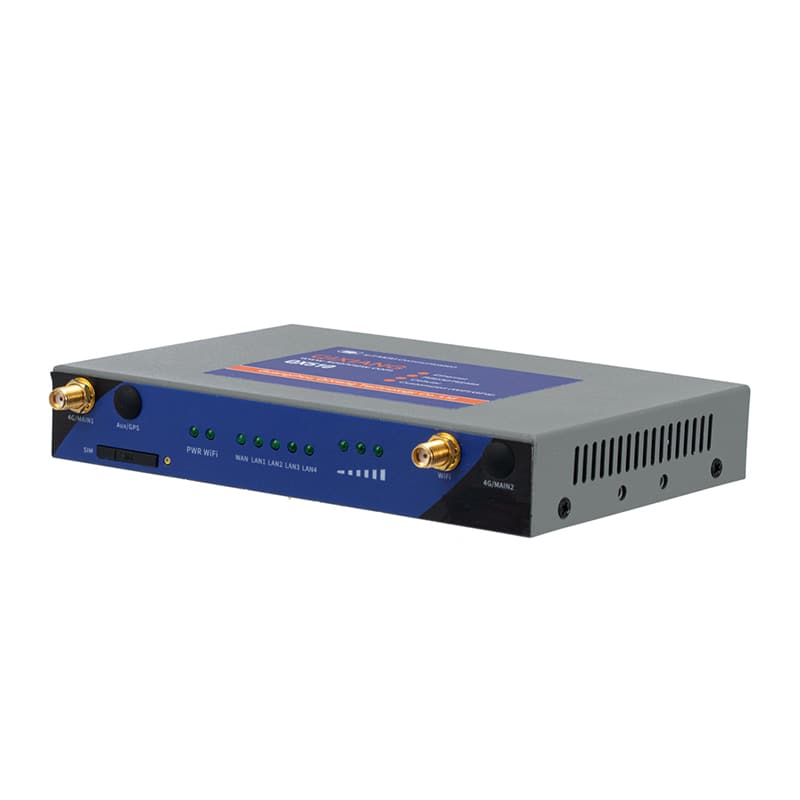

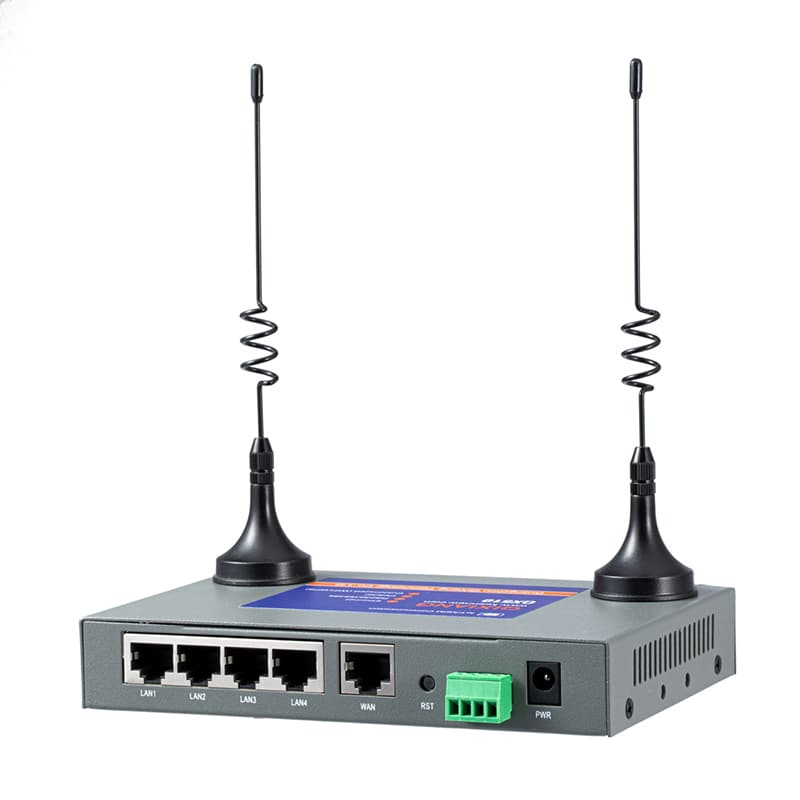

QX510 Industrial 4G Router
QX510 is the most cost-efficient, rugged, versatile 4G failover router with 5 Ethernet ports in the IoT M2M market, providing robust network connectivity with advanced security features for Wired/WiFi devices. It has a pre-configured firewall, and multiple VPN client modes, and supports multiple industrial communication protocols, which ensure reliable and security connectivity performance in rigorous environments.
Description
Package Information
Inquiry
Key Features
# Rich Ethernet ports of 5, maximum support 5 wired devices' internet connectivity
# Highly stable 2G/3G/4G cellular connections
# Ethernet, Wifi, and 4G internet connection options with auto-failover
# Advanced VPN client modes protocols integrated, and pre-configured firewall provide secure network
# Serial RS-232/RS-485 interface allows data transmission for industrial serial devices
# Successfully applied in big projects: Powerline LBS in Southeast Asia, EV Charging Stations in North America, Weather Stations in Middle East, etc.
Specifications
| Cellular Interface | |
| Module | 4G (LTE) – CAT 4 Theoretical speed up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
| Number of antennas | 1 External Antenna |
| Connector | SMA-K |
| SIM | 1 Mini SIM (2 FF) |
| Ethernet Interface | |
| Number of ports | 5 x 10/100 Mbps (RJ45), 4 x LAN + 1 x WAN or 5 x LAN; IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| Magnet isolation protection | 1.5 KV |
| Wi-Fi Interface | |
| Number of antennas | 2 External Antenna |
| Connector | SMA-K |
| Standards | 802.11 b/g/n, supports AP and Client modes, Max up to 150Mbps |
| Frequency bands | 2.4 GHz |
| Security | WEP, WPA, WPA2, WPA3 |
| Serial Interface | |
| Type | 1 x RS-232 or 1 x RS-485 serial port |
| Connector | 1 x 3-pin 3.5 mm female socket |
| Signal definition | RS232: TX, RX, GND; RS485: A, B |
| Baudrate | 300-115200bps |
| Serial functions | Serial over IP, Serial to Ethernet, DTU Modem, Modbus gateway, Modbus RTU Master/Slave, Modbus TCP Master/Slave, Modbus RTU to Modbus TCP, Modbus TCP to Modbus RTU transfer |
| Transparent transmission | Mode: TCP Server/Client, UDP Server/Client, RealCom, UDP Range, UDP Multicast, Pair Master/Slave |
| GNSS interface (Optional) | |
| Number of antennas | 1 External Antenna |
| Connector | SMA-K |
| Others | |
| Reset button | 1 x RST |
| LED indicators | 1 x WAN, 4 x LAN, 1 x SIM, 1 x PWR, 1 x WiFi |
| Watchdog | Built-in Hardware and Software |
| Hardware & Physical Characteristics | |
| CPU | Dual Core 880MHz |
| RAM | 256 MB |
| FLASH memory | 16 MB |
| Ingress Protection | IP41 |
| Housing & Weight | Metal, 410g |
| Dimension | 152 x 104 x 25 mm (L x W x H) |
| Installations | Desktop, wall mounting |
| Operating temperature | -30 °C to 70 °C |
| Storage temperature | -40 °C to 85 °C |
| Relative humidity | <95%(no condensation) |
| Power Supply and Consumption | |
| Power Connector | DC Round Hole Power |
| Voltage Input | 7.5 – 32 V DC, reverse polarity protection, surge protection |
| Power consumption | < 3 W |
| Software (Qixiang OS) | |
| Network protocols | PPP, PPPoE, TCP, UDP, IPv4, IPv6, DHCP , ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, FTP, SNMP, DDNS, UPnP, MQTT, QoS etc. |
| APN | Auto APN, customs APN, and VPDN |
| VPN Client Modes | PPTP, L2TP, IPSec, OPENVPN, N2N, GRE, EOIP |
| Firewall | DMZ, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control, NAT, Port Forword, Black/White List |
| Auto Fail-over (Optional) | Between Cellular and WAN, Cellular and Wi-Fi (station mode), WAN and Wi-Fi (station mode) |
| Load Balancing (Optional) | Balance your internet traffic over multiple WAN connections |
| Network Monitoring | Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| SMS | Yes, Optional |
| SDK | SDK package with built environment provided |
| Remote Management | HTTP, Qixiang Cloud Platform |
| Regulatory and Type Approvals | |
| Regulatory | CE, RoHS, Wi-Fi Certified, CCC |
| Operator | Global, customize for your country's cellular bands |
| Standards | EN 301 489-1 V2.2.0:2017; EN 301 489-17 V3.2.0:2017; EN 300 328 V2.1.1:2016; EN 62311:2008; EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013; IEC 62321:2013/2015. etc. |
Ordering Model
| Part Number | Cellular Bands | Region | WiFi | GPS |
| QX510-N | 4G LTE-FDD:B2/4/5/12/13/17/18/25/26 4G LTE-TDD:B41 3G WCDMA:B2/4/5 2G EVDO:BC0/1 2G GSM:850/1900 | North America | ||
| QX510-NW | √ | |||
| QX510-NG | √ | |||
| QX510-NWG | √ | √ | ||
| QX510-E | 4G LTE-FDD:B1/3/5/7/8/20/28 4G LTE-TDD:B38/40/41 3G WCDMA:B1/8 2G GSM:900/1800 | Europe, Middle East, Africa, Korea, Southeast Asia | ||
| QX510-EW | √ | |||
| QX510-EG | √ | |||
| QX510-EWG | √ | √ | ||
| QX510-A | 4G LTE FDD:B1/2/3/4/5/7/8/28/66 4G LTE TDD:B40 3G WCDMA:B1/2/4/5/8 2G GSM:850/900/1800/1900 | Australia, New Zealand, South America | ||
| QX510-AW | √ | |||
| QX510-AG | √ | |||
| QX510-AWG | √ | √ | ||
| Note: 1. If request other frequency band model, please consult sale person 2. If request other optional features, please consult sale person 3. Select RS-232 or RS-485 serial port when place order | ||||
Standard package:
# Router QX510
# Power Supply Adapter Plug (US/UK/AU/EU standard option)
# 1x Mobile antenna (SMA type)
# 2x Wi-Fi antenna (SMA type)
# Ethernet cable
# SIM Adapter kit
# Quick Start Guide
# Packaging box
*Standard package contents may differ based on different ordering model.
