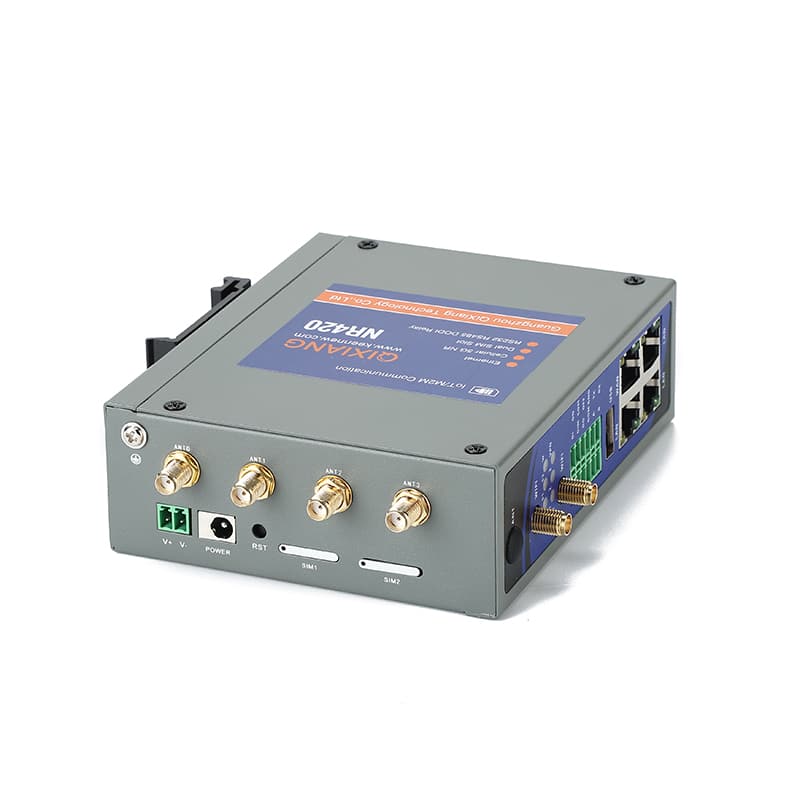

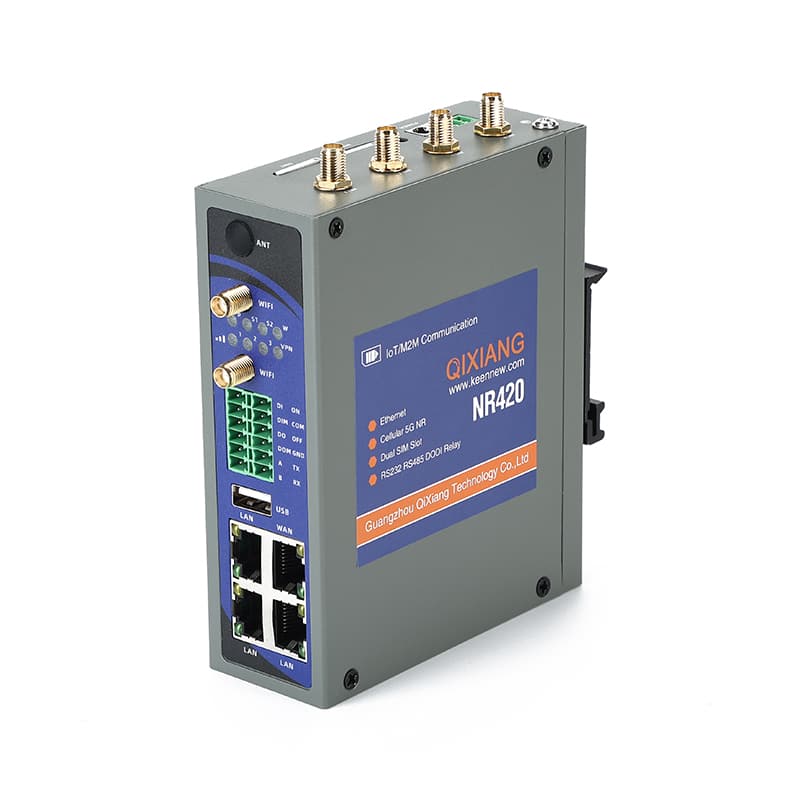

NR420 DIN-Rail Industrial 5G Router
NR420 is an upgraded DIN-Rail 5G WiFi router with rich interfaces like Dual SIM card slots (single standby), DIN-Rail bracket, RS-232, RS-485, 4G LTE, WiFi, DO/DI, USB port, and Relay. It brings high-speed, robust, and reliable Global 5G cellular connectivity for many customers in the vertical industries. DIN-Rail and rich interfaces make it easy to deploy in all kinds of industrial applications as primary or backup connection, guaranteeing network continuity and eliminating downtime.
Description
Package Information
Inquiry
Key Features
# Ethernet, WiFi, Cellular internet connection, and Dual SIM modem with WAN auto-failover
# Rich interfaces: Dual SIM card slots (single standby), DIN-Rail bracket, RS-232, RS-485, 4G LTE, WiFi, DO/DI, USB port and Relay
# Robust industrial design (9 to 32V DC, desktop or DIN rail mounting, 3.5 mm 10-pin socket connectors)
# Highly reliable Global 5G/4G/3G cellular connections
# Multiple VPN client modes protocols: PPTP, L2TP, IPSec, OPENVPN, N2N, GRE, EOIP
# GNSS option for precise location tracking
Specifications
| Cellular Interface | |
| Module | 5G NR 300Mbps/4Gbps, 4G (LTE) – CAT 20 speed up to 200 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
| Number of antennas | 4 External Antenna |
| Connector | SMA-K |
| SIM | 2 Nano SIM |
| Ethernet Interface | |
| Number of ports | 4 x 10/100/1000 Mbps (RJ45), 3 x LAN + 1 x WAN or 4 x LAN; IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| Magnet isolation protection | 1.5 KV |
| Wi-Fi Interface | |
| Number of antennas | 2 External Antenna |
| Connector | SMA-K |
| Standards | 802.11 b/g/n/ac, supports AP and Client modes, Max up to 150Mbps |
| Frequency bands | 2.4 GHz/5.8 Ghz |
| Security | WEP, WPA, WPA2, WPA3 |
| Serial Interface | |
| Type | 1 x RS-232 and 1 x RS-485 serial port |
| Connector | 1 x 5-pin 3.5 mm female socket |
| Signal definition | RS232: TX, RX, GND; RS485: A, B |
| Baudrate | 300-115200bps |
| Serial functions | Serial over IP, Serial to Ethernet, DTU Modem, Modbus gateway, Modbus RTU Master/Slave, Modbus TCP Master/Slave, Modbus RTU to Modbus TCP, Modbus TCP to Modbus RTU transfer |
| Transparent transmission | Mode: TCP Server/Client, UDP Server/Client, RealCom, UDP Range, UDP Multicast, Pair Master/Slave |
| DI/DO | |
| Type | 1 x DI + 1 x DO |
| Connector | 4-pin 3.5 mm female socket |
| GNSS interface (Optional) | |
| Number of antennas | 1 External Antenna |
| Connector | SMA-K |
| Others | |
| Relay | 1 x 3-pin 3.5 mm female socket |
| USB | 1 USB Port |
| Reset button | 1 x RST |
| LED indicators | "PWR", “SIM1”, “SIM2”, “GPS”, "WiFi", 3×"Signal" |
| Watchdog | Built-in Hardware and Software |
| Hardware & Physical Characteristics | |
| CPU | Dual Core 880MHz |
| RAM | 256 MB |
| FLASH memory | 16 MB |
| Ingress Protection | IP41 |
| Housing & Weight | Metal, 420g |
| Dimension | 127 x 102 x 40 mm (L x W x H) |

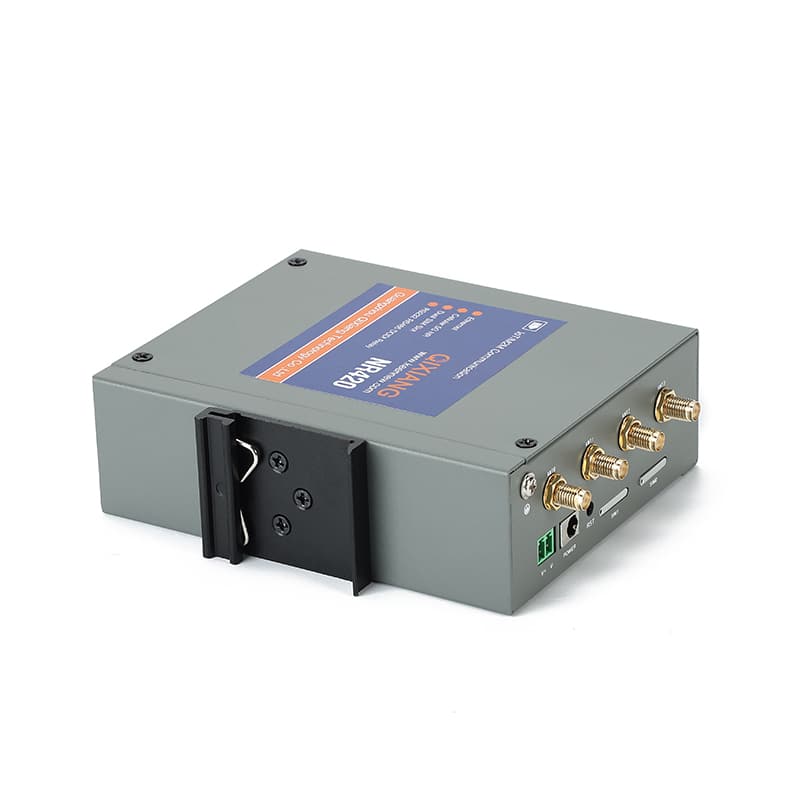

| Installations | Desktop, 35 mm DIN rail mounting |
| Operating temperature | -30 °C to 70 °C |
| Storage temperature | -40 °C to 85 °C |
| Relative humidity | <95%(no condensation) |
| Power Supply and Consumption | |
| Power Connector | DC Round Hole Power, DC 2-pin 3.5 mm female socket |
| Voltage Input | 7.5 – 32 V DC, reverse polarity protection, surge protection |
| Power consumption | < 3 W |
| Software (Qixiang OS) | |
| Network protocols | PPP, PPPoE, TCP, UDP, IPv4, IPv6, DHCP , ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, FTP, SNMP, DDNS, UPnP, MQTT, QoS etc. |
| APN | Auto APN, customs APN, and VPDN |
| VPN Client Modes | PPTP, L2TP, IPSec, OPENVPN, N2N, GRE, EOIP |
| Firewall | DMZ, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control, NAT, Port Forword, Black/White List |
| Auto Fail-over (Optional) | Between Cellular and WAN, Cellular and Wi-Fi (station mode), WAN and Wi-Fi (station mode) |
| Load Balancing (Optional) | Balance your internet traffic over multiple WAN connections |
| Network Monitoring | Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| SMS | Yes, Optional |
| SDK | SDK package with built environment provided |
| Remote Management | HTTP, Qixiang Cloud Platform |
| Regulatory and Type Approvals | |
| Regulatory | CE, RoHS, Wi-Fi Certified, CCC |
| Operator | Global, customize for your country's cellular bands |
| Standards | EN 301 489-1 V2.2.0:2017; EN 301 489-17 V3.2.0:2017; EN 300 328 V2.1.1:2016; EN 62311:2008; EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013; IEC 62321:2013/2015. etc. |
Ordering Model
| Part Number | Cellular Bands | Region | WiFi | GPS |
| NR420-EA | 5G NR SA: N1/3/5/7/8/20/28/38/40/41/77/78/79 5G NR NSA: N1/3/5/7/8/20/28/38/40/41/77/78/79 4G LTE FDD: B1/3/5/7/8/18/19/20/26/28/32/71 4G LTE TDD: B38/39/40/41/42 3G WCDMA: B1/5/8 | Europe, Asia, Japan, South Korea, Australia, South America | ||
| NR420-EAW | √ | |||
| NR420-EAG | √ | |||
| NR420-EAWG | √ | √ | ||
| NR420-NA | 5G NR SA: N2/5/7/12/13/14/25/38/41/48/66/71/77/78 5G NR NSA: N2/5/7/12/13/14/25/38/41/48/66/71/77/78 4G LTE FDD: B2/4/5/7/12/13/14/17/25/26/66/71 4G LTE TDD: B38/41/42/43/48 3G WCDMA: B2/4/5 | North America, South America | ||
| NR420-NAW | √ | |||
| NR420-NAG | √ | |||
| NR420-NAWG | √ | √ | ||
| Note: 1. If request other frequency band model, please consult sale person 2. If request other optional features, please consult sale person | ||||
Standard package:
# Router NR420
# Power Supply Adapter Plug (US/UK/AU/EU standard option)
# 4x Mobile 5G antenna (SMA type)
# 2x Wi-Fi antenna (SMA type)
# Ethernet cable
# SIM Adapter kit
# Quick Start Guide
# Packaging box
*Standard package contents may differ based on different ordering model.
