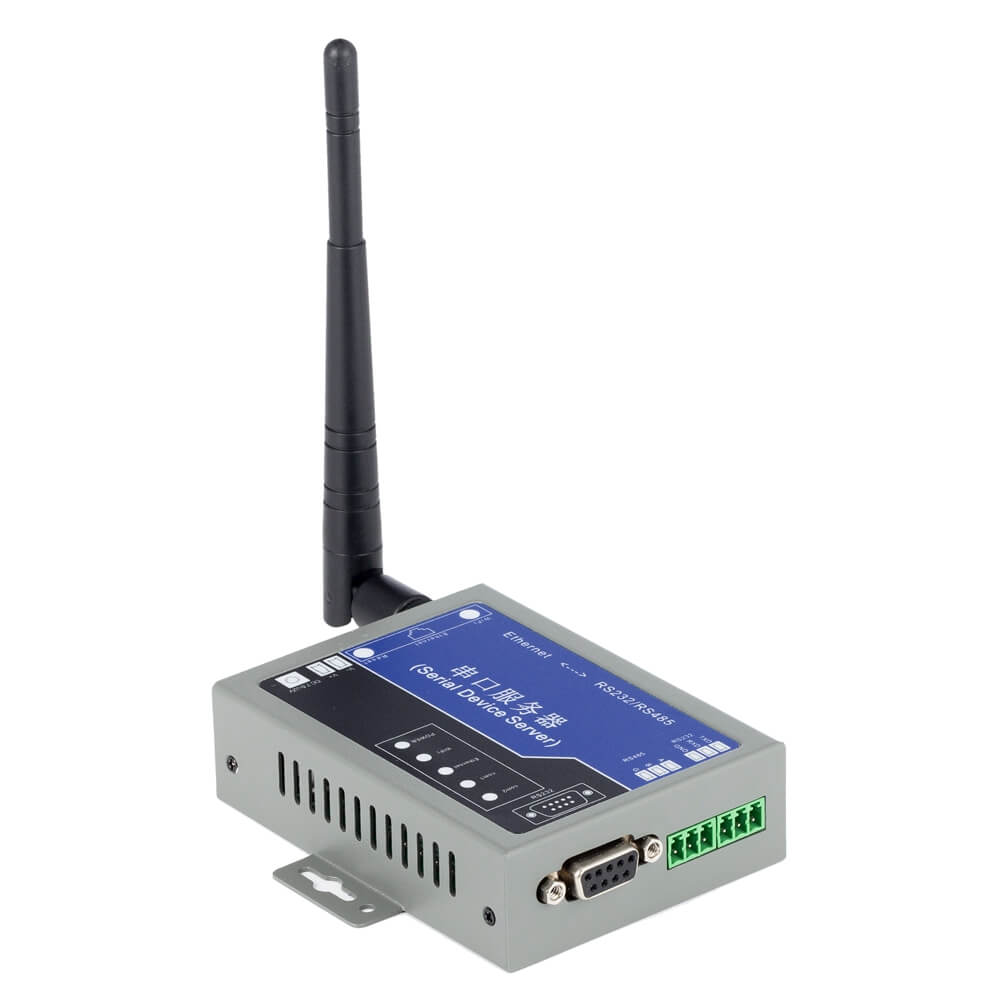

SDS100/200 Serial Device Server
Key Features
Industrial-grade Design
# High-powered industrial 32-bit processor
# Low power consumption, less heat generation, high speed, reliable
# Wall mounting
# Metal housing, excellent heat dissipation
# Wide voltage: 7.5V~32V DC
Stable and Reliable
# Hardware & Software WDT and multi-link detection enable automatic fault detection, self-recovery capabilities to ensure equipment work in a stable and reliable way
# RS232/RS485 ESD protection, avoid Static Electricity Shock
Network Characteristics
# Support serial port RS232 and RS485 that can connect to serial devices directly, unique interface integration advantages, you do not need to worry about the problem of interface diversity
# Support industrial applications, support Modbus Multi-host Polling
# Built-in TCP/IP protocol, easily convert serial data to IP data and provide network connectivity for serial device
# Support Multiple Center
# Support Static IP Address or DHCP to obtain IP address automatically
# Auto redial when off line and keep alive
Other Characteristics
# Support several work modes: TCP Server/Client mode, UDP Server/Client mode, RealCom mode, UDP Range mode, UDP Multicast mode, Pair Master/Slave mode, transparent transmission, ets
# Support Modbus TCP/Modbus RTU, Modbus RTU TO Modbus TCP conversion, Modbus TCP TO Modbus TCP conversion, Modbus RTU TO Modbus RTU conversion.
# Support hardware and software WDT
# Support auto recovery mechanism, including online detect, auto redial when offline to make it always online.
# Web page parameter configuration, support self-define customized web page, convenient configuration and maintenance interface
# Support remote firmware upgrade, flexible to upgrade firmware
# Optional serial port for RS232 or RS485
# Support scheduled reboot and automatically redial when offline
Specifications
| Wi-Fi | |
| Standard | IEEE802.11b/g/n, Max up to 150Mbps |
| Security encryption | WEP, WPA, WPA2, Optional WPS function |
| Transmit Power | 16-17dBm(11g), 18-20dBm(11b), 15dBm(11n) |
| Receiving Sensitivity | <-72dBm@54Mpbs |
| Interface | |

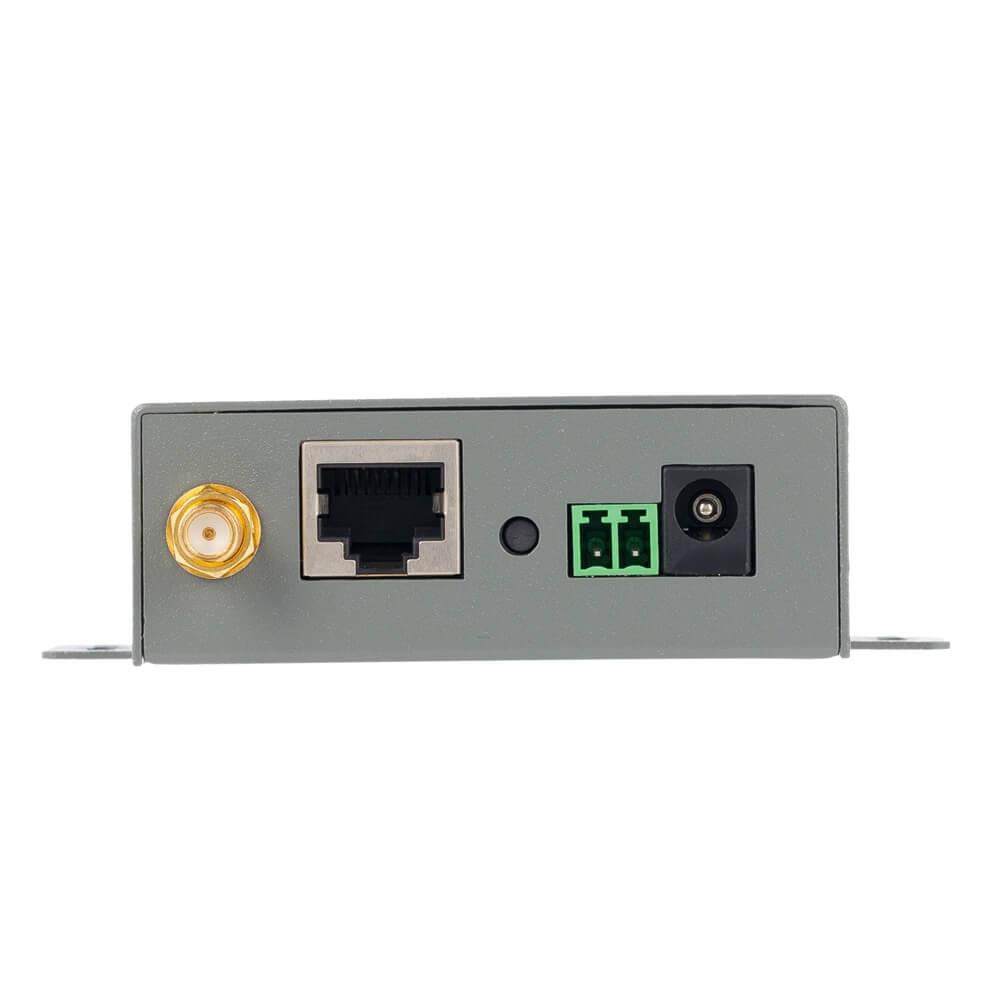

| Ethernet | 1×Wan (Ethernet interface, RJ45), Auto MDI/MDIX, built-in ESD |
| Serial Port | 2×RS232, 1×RS485 |
| LED Indicators | 1×"PWR",1×" Ethernet", 1×"WIFI", 2×"Com" |
| Antenna Interface | 1 standard SMA antenna interface (WIFI),50ΩSMA |
| Power Supply | Support round hole type and terminal type power supply, 7.5V-32V(standard DC12V/1A), built-in power transient overvoltage protection |
| Reset Button | Reset configuration parameter to default values |
| Power Supply | |
| Standard power | DC 12V/1A |
| Physic | |
| CPU | 560MHz |
| Flash/RAM | 16MB/128MB |
| Shell | metal plate shell |
| Dimension | 96×71×26mm |
| Weigh | About 200g |
| Environmental | |
| Operating Temperature | -30 to 70°C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | < 95% no coagulation |
Ordering Model
| Mode | Product | Serial Port | Power Supply | Wi-Fi |
| SDS100 | Serial Device Server Standard Version | 2 × RS232, 1 × RS485 | Round Hole type, Terminal Block type | |
| SDS200 | Serial Device Server WiFi Version | 2 × RS232, 1 × RS485 | Round Hole type, Terminal Block type | √ |
| Note: | ||||
| 1. If request other frequency band model, please consult sale person. 2. Please specify when order if request other optional features. 3. Customized request please contact sale person | ||||
Standard package:
# Serial Device Server SD100/SD200
# Power Supply Adapter Plug (US/UK/AU/EU standard option)
# 1x Wi-Fi antenna (SMA type) for SDS200
# Ethernet cable
# Quick Start Guide
# Packaging box
*Standard package contents may differ based on different ordering model.
