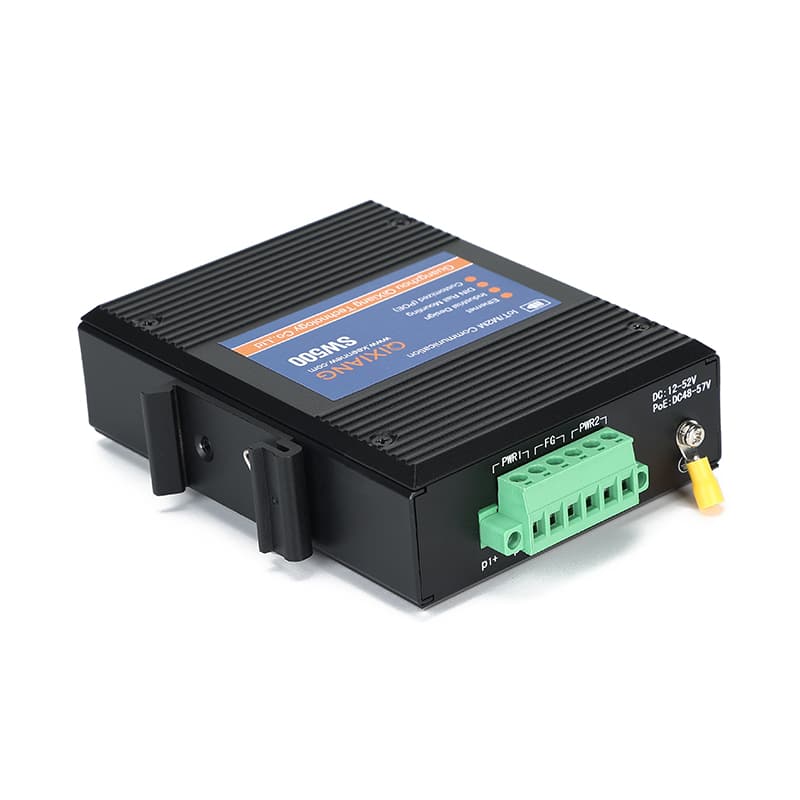

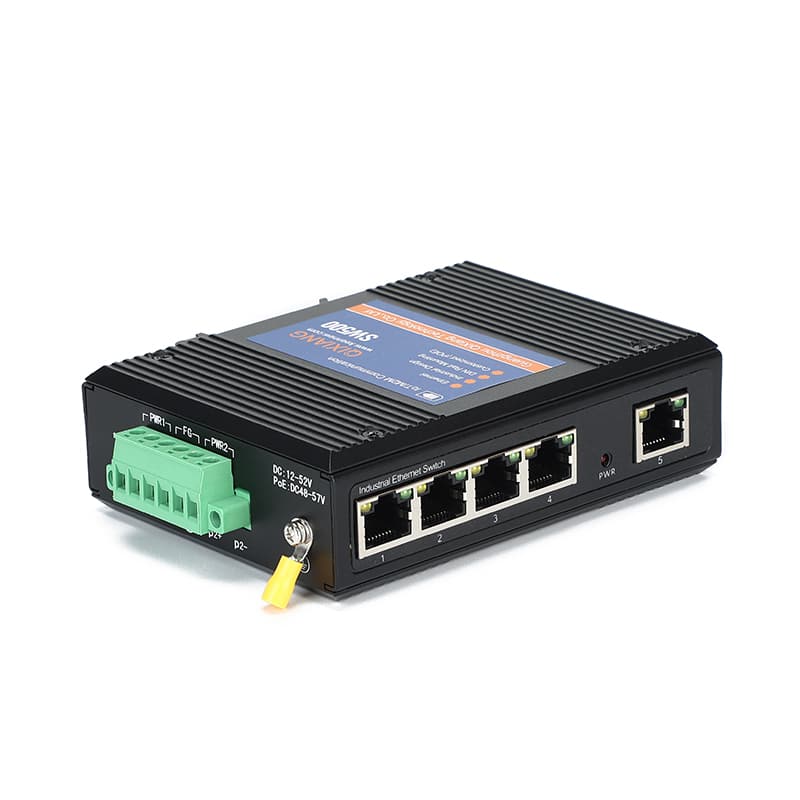

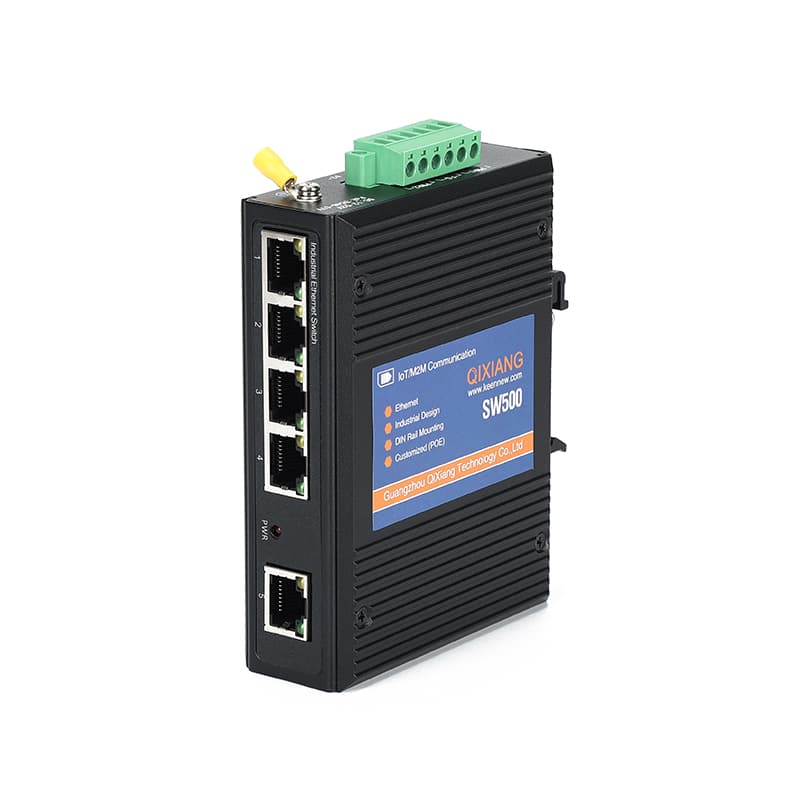

SW500-EP Industrial POE Switch (5 Ports)
The SW500-EP is a five ports, smart, unmanaged industrial Ethernet switch support Power-over-Ethernet on RJ45 ports. This PoE switches enable centralization of the power supply, providing up to 30 watts of power per port and reducing the effort needed for installing power.
The switches can be used to power IEEE 802.3af/at standard devices (power devices), eliminating the need for additional wiring, and they support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical high-bandwidth solution for your industrial Ethernet network.
The compact size, wide-temperature, Din-rail mounting, highe level EMI/EMC capabilities, rugged metal housing protection level up to IP40, dual redundant power input, low power consumption, and excellent heat dissipation features. Which are ideal for applications that require reliable industrial Ethernet connections.
Description
Package Information
Inquiry
Key Features
# 10/100BaseT(X) (RJ45 connector), Full/Half duplex mode, Auto MDI/MDI-X connection
# IEEE 802.3af/at, PoE standards
# Store and Forward
# Compact size for easy installation
# IP40-rated metal housing
# DC 48V-57V voltage, Reverse Polarity Protection, 4A Overcurrent Protection
# -40 to 85°C wide operating temperature range
# Industrial Grade, MTBF (Mean Time Between Failure) over 300,000 hours
# Lightning Surge Protection (power supply): 5000A (8/20μ)
Specifications
| Interfaces | |

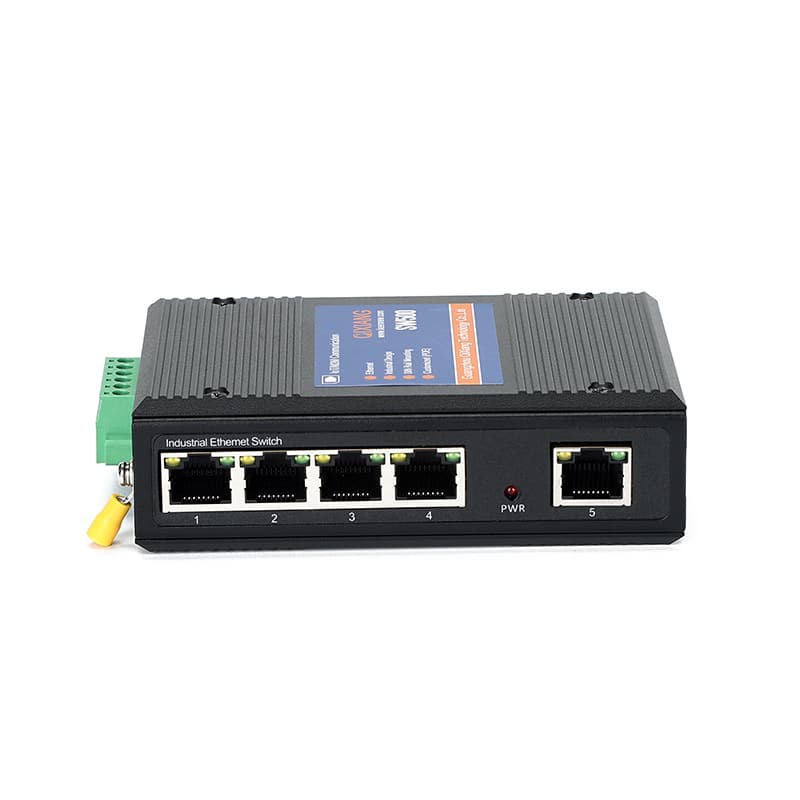

| Ethernet Ports | 5×Ethernet interface(RJ45), Auto MDI/MDI-X, Auto negotiation speed |
| Network Standards | IEEE802.3 - CSMA/CD |
| IEEE802.3i - 10Base-T | |
| IEEE802.3u - 100Base-TX/FX | |
| IEEE802.3x for flow control | |
| PoE Parameters | |
| Standards | IEEE802.3af / IEEE802.3at, auto-sensing |
| Consumption | Each PoE Port (Max): 15.4 W (IEEE 802.3af) |
| Each PoE Port (Max): 30 W (IEEE 802.3at) | |
| Output Voltage | DC 48-57V |
| PoE Pinout | V+, V+, V-, V- for pins 1, 2, 3, 6 |
| Switch Properties | |
| Processing Type | Store and Forward |
| MAC Table Size | 1 K |
| Packet Buffer Size | 1 M |
| Forwarding Rate | 0.744Mpps |
| Switching Capacity | 1Gbps |
| Consumption | Less than 3W |
| Power Supply | |

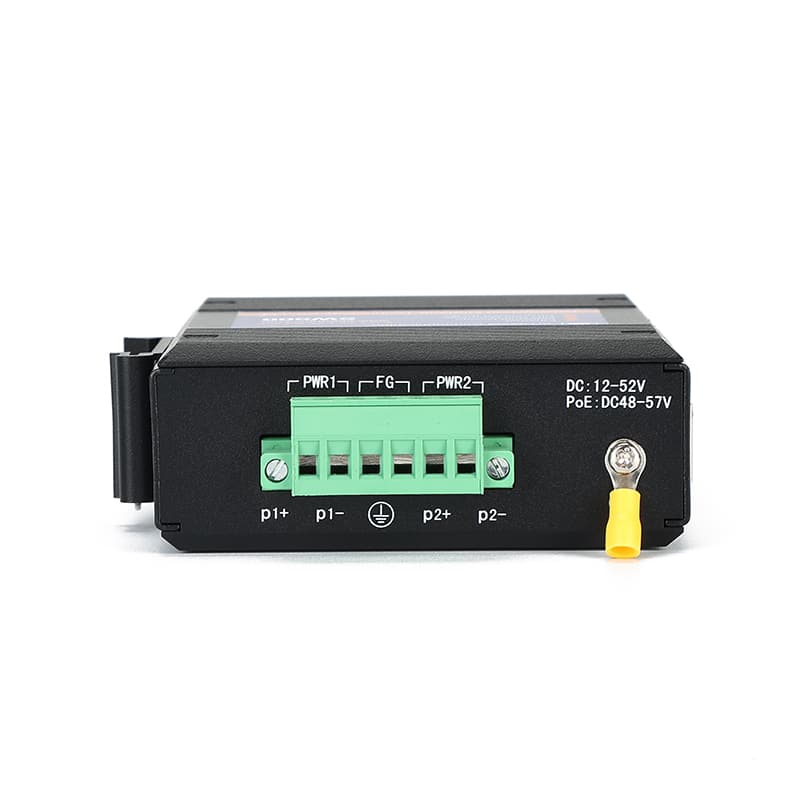

| Connection | Industrial phoenix terminal block(s), dual redundant power input |
| Input Voltage | DC 48V-57V |
| Overload Current Protection | Support |
| Reverse Polarity Protection | Support |
| Lightning Surge Protection | 5000A (8/20μ) |
| Physical Characteristics | |
| Dimensions | 116 x 88 x 34 mm |
| Installation | DIN-rail mounting, Desktop |
| Weight | Around 360g |
| Housing | Metal, IP40 |
| Environmental Limits | |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Standards/Certification | |
| EMC | EN 55022 Class A |
| EMI | FCC Part 15 Subpart B Class A |
| EMS | IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) |
| IEC(EN)61000-4-3(RS): 10V/m(80~1000MHz) | |
| IEC(EN)61000-4-4(EFT): PowerPort:±4kV; Data Port: ±2kV | |
| IEC(EN)61000-4-5(Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV | |
| IEC61000-4-6(CS): 10V(150kHz~80MHz) | |
| IEC(EN)61000-4-16(CM EMI) : 30V cont. 300V,1s | |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Freefall | IEC 60068-2-32 |
| Certification | FCC, CE, ROHS, ISO9001:2015 |
| MTBF | |
| Time | More than 300,000 hours |
| Warranty | |
| Warranty Period | 3 Years |
Ordering Model
| Model Name | Ethernet Ports | POE |
| SW500-E | 5×10/100BaseT(X) (RJ45 connector) | × |
| SW500-GE | 5×10/100/1000BaseT(X) (RJ45 connector) | × |
| SW500-EP | 5×10/100BaseT(X) (RJ45 connector) | √ |
| SW500-GEP | 5×10/100/1000BaseT(X) (RJ45 connector) | √ |
| SW800-E | 8×10/100BaseT(X) (RJ45 connector) | × |
| SW800-GE | 8×10/100/1000BaseT(X) (RJ45 connector) | × |
| SW800-EP | 8×10/100BaseT(X) (RJ45 connector) | √ |
| SW800-GEP | ×10/100/1000BaseT(X) (RJ45 connector) | √ |
Standard package:
# POE Switch SW500-EP
# Quick Start Guide
# Packaging box
*Standard package contents may differ based on different ordering model.
